Overview

This section covers basic concepts and terms used throughout the SCR documentation and source code.

Intro to the SCR API

This section provides an overview of how one may integrate the SCR API into an application. For a more detailed discussion, please refer to the user manual.

SCR is designed to support MPI applications that write application-level checkpoints, primarily as a file-per-process. In a given checkpoint, each process may actually write zero or more files, but the current implementation assumes that each process writes roughly the same amount of data. The checkpointing code for such applications may look like the following:

int main(int argc, char* argv[]) {
  MPI_Init(argc, argv);

  for (t = 0; t < TIMESTEPS; t++) {
    /* ... do work ... */

    /* every so often, write a checkpoint */
    if (t % CHECKPOINT_FREQUENCY == 0)
      checkpoint();
  }

  MPI_Finalize();
  return 0;
}

void checkpoint() {
  /* rank 0 creates a directory on the file system,
   * and then each process saves its state to a file */

  /* get rank of this process */
  int rank;
  MPI_Comm_rank(MPI_COMM_WORLD, &rank);

  /* rank 0 creates directory on parallel file system */
  if (rank == 0)
    mkdir(checkpoint_dir);

  /* hold all processes until directory is created */
  MPI_Barrier(MPI_COMM_WORLD);

  /* build file name of checkpoint file for this rank */
  char checkpoint_file[256];
  sprintf(checkpoint_file, "%s/rank_%d".ckpt",
    checkpoint_dir, rank
  );

  /* each rank opens, writes, and closes its file */
  FILE* fs = open(checkpoint_file, "w");
  if (fs != NULL) {
    fwrite(checkpoint_data, ..., fs);
    fclose(fs);
  }
}

The following code exemplifies the changes necessary to integrate SCR. Each change is numbered for further discussion below.

int main(int argc, char* argv[]) {
  MPI_Init(argc, argv);

  /**** change #1 ****/
  SCR_Init();

  for (t = 0; t < TIMESTEPS; t++) {
    /* ... do work ... */

    /**** change #2 ****/
    int need_checkpoint;
    SCR_Need_checkpoint(&need_checkpoint);
    if (need_checkpoint)
      checkpoint();
  }

  /**** change #3 ****/
  SCR_Finalize();

  MPI_Finalize();
  return 0;
}

void checkpoint() {
  /* rank 0 creates a directory on the file system,
   * and then each process saves its state to a file */

  /**** change #4 ****/
  SCR_Start_checkpoint();

  /* get rank of this process */
  int rank;
  MPI_Comm_rank(MPI_COMM_WORLD, &rank);

  /**** change #5 ****/
  /*
      if (rank == 0)
        mkdir(checkpoint_dir);

      /* hold all processes until directory is created */
      MPI_Barrier(MPI_COMM_WORLD);
  */

  /* build file name of checkpoint file for this rank */
  char checkpoint_file[256];
  sprintf(checkpoint_file, "%s/rank_%d".ckpt",
    checkpoint_dir, rank
  );

  /**** change #6 ****/
  char scr_file[SCR_MAX_FILENAME];
  SCR_Route_file(checkpoint_file, scr_file);

  /**** change #7 ****/
  /* each rank opens, writes, and closes its file */
  FILE* fs = open(scr_file, "w");
  if (fs != NULL) {
    fwrite(checkpoint_data, ..., fs);
    fclose(fs);
  }

  /**** change #8 ****/
  SCR_Complete_checkpoint(valid);
}

First, as shown in change #1, one must call SCR_Init() to initialize the SCR library before it can be used. SCR uses MPI, so SCR must be initialized after MPI has been initialized. Similarly, as shown in change #3, it is good practice to shut down the SCR library by calling SCR_Finalize(). This must be done before calling MPI_Finalize(). As shown in change #2, the application may rely on SCR to determine when to checkpoint by calling SCR_Need_checkpoint(). SCR can be configured with information on failure rates and checkpoint costs for the particular host platform, so this function provides a portable method to guide an application toward an optimal checkpoint frequency.

Then, as shown in change #4, the application must inform SCR when it is starting a new checkpoint by calling SCR_Start_checkpoint(). Similarly, it must inform SCR when it has completed the checkpoint with a corresponding call to SCR_Complete_checkpoint() as shown in change #8. When calling SCR_Complete_checkpoint(), each process sets the valid flag to indicate whether it wrote all of its checkpoint files successfully. SCR manages checkpoint directories, so the mkdir operation is removed in change #5.

Between the call to SCR_Start_checkpoint() and SCR_Complete_checkpoint(), the application must register each of its checkpoint files by calling SCR_Route_file() as shown in change #6. SCR “routes” the file by replacing any leading directory on the file name with a path that points to another directory in which SCR caches data for the checkpoint. As shown in change #7, the application must use the exact string returned by SCR_Route_file() to open its checkpoint file.

All SCR functions are collective, except for SCR_Route_file(). Additionally, SCR imposes the following semantics:

1. A process of a given MPI rank may only access files previously written by itself or by processes having the same MPI rank in prior runs. We say that a rank “owns” the files it writes. A process is never guaranteed access to files written by other MPI ranks.

2. During a checkpoint, a process may only access files of the current checkpoint between calls to SCR_Start_checkpoint() and SCR_Complete_checkpoint(). Once a process calls SCR_Complete_checkpoint() it is no longer guaranteed access to any file it registered during that checkpoint via a call to SCR_Route_file().

3. During a restart, a process may only access files from its “most recent” checkpoint, and it must access those files between calls to SCR_Init() and SCR_Start_checkpoint(). That is, a process cannot access its restart files until it calls SCR_Init(), and once it calls SCR_Start_checkpoint(), it is no longer guaranteed access to its restart files. SCR selects which checkpoint is considered to be the “most recent”.

These semantics enable SCR to cache checkpoint files on devices that are not globally visible to all processes, such as node-local storage. Further, these semantics enable SCR to move, reformat, or delete checkpoint files as needed, such that it can manage this cache, which may be small.

Jobs, allocations, and runs

A large-scale simulation often must be restarted multiple times in order to run to completion. It may be interrupted due to a failure, or it may be interrupted due to time limits imposed by the resource scheduler. We use the term allocation to refer to an assigned set of compute resources that are available to the user for a period of time. A resource manager typically assigns an id to each resource allocation, which we refer to as the allocation id. SCR uses the allocation id in some directory and file names. Within an allocation, a user may execute a simulation one or more times. We call each execution a run. For MPI applications, each run corresponds to a single invocation of mpirun or its equivalent. Finally, multiple allocations may be required to complete a given simulation. We refer to this series of one or more allocations as a job. To summarize, one or more runs occur within an allocation, and one or more allocations occur within a job.

Group, store, and redundancy descriptors

SCR duplicates MPI_COMM_WORLD and stores a copy in scr_comm_world. Each process also caches its rank and the size of scr_comm_world in scr_my_rank_world and scr_ranks_world, respectively. This communicator is created during SCR_Init(), and it is freed during SCR_Finalize(). The variables are defined in scr_globals.h and declared and initialized in scr_globals.c.

The SCR library must group processes of the parallel job in various ways. For example, if power supply failures are common, it is necessary to identify the set of processes that share a power supply. Similarly, it is necessary to identify all processes that can access a given storage device, such as an SSD mounted on a compute node. To represent these groups, the SCR library uses a group descriptor. Details of group descriptors are given in Section Group descriptors.

The library creates two groups by default: NODE and WORLD. The NODE group consists of all processes on the same compute node, and WORLD consists of all processes in the run. The user or system administrator can create additional groups via configuration files.

The SCR library must also track details about each class of storage it can access. For each available storage class, SCR needs to know the associated directory prefix, the group of processes that share a device, the capacity of the device, and other details like whether the associated file system can support directories. SCR tracks this information in a store descriptor. Each store descriptor refers to a group descriptor, which specifies how processes are grouped with respect to that class of storage. Group descriptors must exist before the store descriptors can be created. For a given storage class, it is assumed that all compute nodes refer to the class using the same directory prefix. Each store descriptor is referenced by its directory prefix. Details of store descriptors are given in Section Store descriptors.

The library creates one store descriptor by default: /tmp. The assumption is made that /tmp is mounted as a local file system on each compute node. On Linux clusters, /tmp is often RAM disk or a local hard drive. Additional store descriptors can be defined by the user or system administrator in configuration files.

Finally, SCR defines redundancy descriptors to associate a redundancy scheme with a class of storage and a group of processes that are likely to fail at the same time. It also tracks details about the particular redundancy scheme used, and the frequency with which it should be applied. Redundancy descriptors reference both store and group descriptors, so these must exist before the SCR library creates its internal redundancy descriptors. Details about redundancy descriptors are given in Section Redundancy descriptors.

The library creates a default redundancy descriptor. It assumes that processes on the same node are likely to fail at the same time. It also assumes that checkpoints can be cached in /tmp, which is assumed to be storage local to each compute node. It applies an XOR redundancy scheme using a group size of 8. Additional redundancy descriptors may be defined by the user or system administrator in configuration files.

All of these descriptors (group, store, and redundancy) are defined by the system administrator or user in system or user configuration files. Additionally, some predefined descriptors are created by the library.

Control, cache, and prefix directories

SCR manages numerous files and directories to cache checkpoint data and to record its internal state. There are three fundamental types of directories: control, cache, and prefix directories. For a detailed illustration of how these files and directories are arranged, see the example presented in Section directories_example.

The control directory is where SCR writes files to store its internal state about the current run. This directory is expected to be stored in node-local storage. SCR writes multiple, small files in the control directory, and it may access these files frequently. It is best to configure this directory to be stored in a node-local RAM disk.

To construct the full path of the control directory, SCR incorporates a control base directory name along with the user name and allocation id associated with the resource allocation, such that the control directory is of the form: <controlbase>/<username>/scr.<allocationid>. This enables multiple users, or multiple jobs by the same user, to run at the same time without conflicting for the same control directory. The control base directory is hard-coded into the SCR library at configure time, but this value may be overridden via a system configuration file. The user may not change the control base directory.

SCR directs the application to write checkpoint files to subdirectories within a cache directory. SCR also stores its redundancy data files in these subdirectories. The device serving the cache directory must be large enough to hold the data for one or more checkpoints plus the associated redundancy data. Multiple cache directories may be utilized in the same run, which enables SCR to use more than one class of storage within a run (e.g., RAM disk and SSD). Cache directories should be located on scalable storage.

To construct the full path of a cache directory, SCR incorporates a cache base directory name with the user name and allocation id associated with the resource allocation, such that the cache directory is of the form: <cachebase>/<username>/scr.<allocationid>. A set of valid cache base directories is hard-coded into the SCR library at configure time, but this set can be overridden in a system configuration file. Out of this set, the user may select a subset of cache base directories that should be used during a run. A cache directory may be the same as the control directory.

The user must configure the maximum number of checkpoints that SCR should keep in each cache directory. It is up to the user to ensure that the capacity of the device associated with the cache directory is large enough to hold the specified number of checkpoints.

For now, SCR only handles checkpoint output sets. However, there are plans to eventually support general, non-checkpoint output sets. SCR refers to each application output set as a dataset, where a checkpoint is a dataset having a certain property, namely that it can be used to restart the simulation. SCR assigns a unique sequence number to each dataset called the dataset id. SCR also assigns a unique sequence number to each checkpoint called the checkpoint id. It assigns dataset ids starting from 1 and counts up with each successive dataset written by the application. Similarly, it starts checkpoint ids from 1 and increments the checkpoint id with each successive checkpoint. The library manages these counters in the scr_dataset_id and scr_checkpoint_id global variables defined in scr.c.

Within a cache directory, a dataset is written to its own subdirectory called the dataset directory. SCR associates each dataset with a redundancy descriptor. The redundancy descriptor describes which cache directory should be used, which redundancy scheme to apply, and how often it should be used (Section Redundancy descriptors). A single run employs a set of one or more redundancy descriptors, and each descriptor is assigned a unique integer index counting up from 0. When starting a new checkpoint, SCR selects a redundancy descriptor, and then it creates a corresponding dataset directory within the cache directory. The full path of the dataset directory is of the form: <cachebase>/<username>/scr.<allocationid>/scr.dataset.<datasetid>.

Finally, the prefix directory is a directory on the parallel file system that the user specifies. SCR copies datasets to the prefix directory for permanent storage (Section Fetch, Flush, and scavenge). The prefix directory should be accessible from all compute nodes, and the user must ensure that the prefix directory name is unique for each job. For each dataset stored in the prefix directory, SCR creates and manages a dataset directory. The dataset directory holds all files associated with a particular dataset, including application files and SCR redundancy files. SCR maintains an index file within the prefix directory, which records information about each dataset stored there.

Note that the term “dataset directory” is overloaded. In some cases, we use this term to refer to a directory in cache and in other cases we use the term to refer to a directory within the prefix directory on the parallel file system. In any particular case, the meaning should be clear from the context.

Example of SCR files and directories

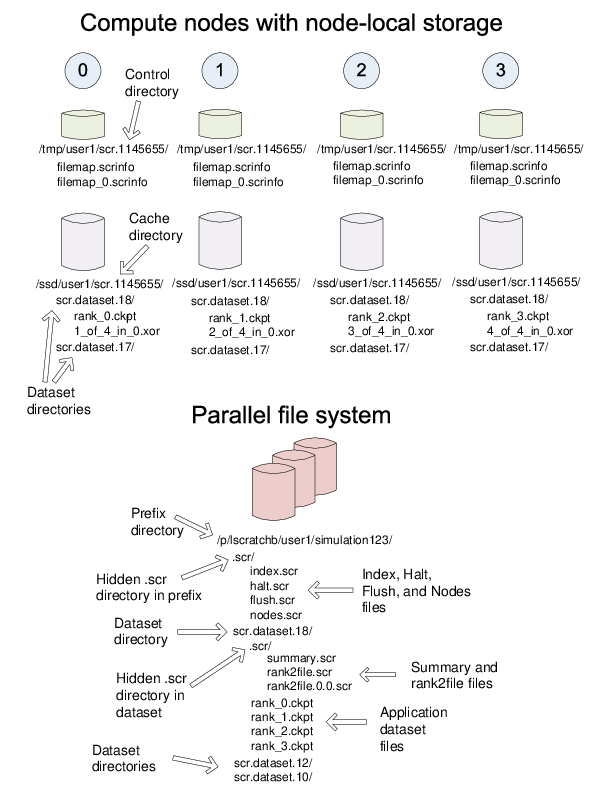

To illustrate how various files and directories are arranged in SCR, consider the example shown in Figure Example of SCR Directories. In this example, a user named “user1” runs a 4-task MPI job with one task per compute node. The base directory for the control directory is /tmp, the base directory for the cache directory is /ssd, and the prefix directory is /p/lscratchb/user1/simulation123. The control and cache directories are storage devices local to the compute node.

Example of SCR Directories

The full path of the control directory is /tmp/user1/scr.1145655. This is derived from the concatenation of the base directory (/tmp), the user name (user1), and the allocation id (1145655). SCR keeps files to persist its internal state in the control directory, including filemap files (Section Filemap files) and the transfer file (Section Transfer file).

Similarly, the cache directory is /ssd/user1/scr.1145655, which is derived from the concatenation of the cache base directory (/ssd), the user name (user1), and the allocation id (1145655). Within the cache directory, SCR creates a subdirectory for each dataset. The dataset directory name includes the dataset id. In this example, there are two datasets currently stored in cache, (scr.dataset.17 and scr.dataset.18). The application dataset files and SCR redundancy files are stored within their corresponding dataset directory. On the node running MPI rank 0, there is one application dataset file (rank_0.ckpt) and one XOR redundancy data file (1_of_4_in_0.xor).

Finally, the full path of the prefix directory is /p/lscratchb/user1/simulation123. This is a path on the parallel file system that is specified by the user, and it is unique to the particular simulation the user is running (simulation123). The prefix directory contains dataset directories. It also contains a hidden .scr directory where SCR writes the index file to record info for each of the datasets (Section Index file). The SCR library also writes the halt file (Section Halt file), the flush file (Section Flush file), and the nodes file (Section Nodes file) to the hidden .scr directory.

While the user provides the prefix directory, SCR defines the name of each dataset directory to be “scr.dataset.<id>” where <id> is the dataset id. In this example, there are multiple datasets stored on the parallel file system (corresponding to dataset ids 10, 12, and 18).

Within each dataset directory, SCR stores the files written by the application. SCR also creates a hidden .scr subdirectory, and this hidden directory contains redundancy files and filemap files. SCR also stores a summary file (Section Summary file) and rank2file map files (Section Rank2file map) in which it records information needed to fetch files from the directory in order to restart the job from the checkpoint.

Scalable checkpoint

In practice, it is common for multiple processes to fail at the same time, but most often this happens because those processes depend on a single, failed component. It is not common for multiple, independent components to fail simultaneously. By expressing the groups of processes that are likely to fail at the same time, the SCR library can apply redundancy schemes to withstand common, multi-process failures. We refer to a set of processes likely to fail at the same time as a failure group.

SCR must also know which groups of processes share a given storage device. This is useful so the group can coordinate its actions when accessing the device. For instance, if a common directory must be created before each process writes a file, a single process can create the directory and then notify the others. We refer to a set of processes that share a storage device as a storage group.

Given knowledge of failure and storage groups, the SCR library implements three redundancy schemes which trade off performance, storage space, and reliability:

Single - each checkpoint file is written to storage accessible to the local process

Partner - each checkpoint file is written to storage accessible to the local process, and a full copy of each file is written to storage accessible to a partner process from another failure group

XOR - each checkpoint file is written to storage accessible to the local process, XOR parity data are computed from checkpoints of a set of processes from different failure groups, and the parity data are stored among the set.

With Single, SCR writes each checkpoint file in storage accessible to the local process. It requires sufficient space to store the maximum checkpoint file size. This scheme is fast, but it cannot withstand failures that disable the storage device. For instance, when using node-local storage, this scheme cannot withstand failures that disable the node, such as when a node loses power or its network connection. However, it can withstand failures that kill the application processes but leave the node intact, such as application bugs and file I/O errors.

With Partner, SCR writes checkpoint files to storage accessible to the local process, and it also copies each checkpoint file to storage accessible to a partner process from another failure group. This scheme is slower than Single, and it requires twice the storage space. However, it is capable of withstanding failures that disable a storage device. In fact, it can withstand failures of multiple devices, so long as a device and the device holding the copy do not fail simultaneously.

With XOR, SCR defines sets of processes where members within a set are selected from different failure groups. The processes within a set collectively compute XOR parity data which is stored in files along side the application checkpoint files. This algorithm is based on the work found in [Ross], which in turn was inspired by [RAID5]. This scheme can withstand multiple failures so long as two processes from the same set do not fail simultaneously.

Computationally, XOR is more expensive than Partner, but it requires less storage space. Whereas Partner must store two full checkpoint files, XOR stores one full checkpoint file plus one XOR parity segment, where the segment size is roughly \(1/(N-1)\) times the size of a checkpoint file for a set of size \(N\). Larger sets demand less storage, but they also increase the probability that two processes in the same set will fail simultaneously. Larger sets may also increase the cost of recovering files in the event of a failure.

Scalable restart

So long as a failure does not violate the redundancy scheme, a job can restart within the same resource allocation using the cached checkpoint files. This saves the cost of writing checkpoint files out to the parallel file system only to read them back during the restart. In addition, SCR provides support for the use of spare nodes. A job can allocate more nodes than it needs and use the extra nodes to fill in for any failed nodes during a restart. SCR includes a set of scripts which encode much of the restart logic (Section Perl modules).

Upon encountering a failure, SCR relies on the MPI library, the resource manager, or some other external service to kill the current run. After the run is killed, and if there are sufficient healthy nodes remaining, the same job can be restarted within the same allocation. In practice, such a restart typically amounts to issuing another “srun” or “mpirun” in the job batch script.

Of the set of nodes used by the previous run, the restarted run should use as many of the same nodes as it can to maximize the number of files available in cache. A given MPI rank in the restarted run does not need to run on the same node that it ran on in the previous run. SCR distributes cached files among processes according to the process mapping of the restarted run.

By default, SCR inspects the cache for existing checkpoints when a job starts. It attempts to rebuild all datasets in cache, and then it attempts to restart the job from the most recent checkpoint. If a checkpoint fails to rebuild, SCR deletes it from cache. To disable restarting from cache, set the SCR_DISTRIBUTE parameter to 0. When disabled, SCR deletes all files from cache and restarts from a checkpoint on the parallel file system.

An example restart scenario is illustrated in Figure 1 in which a 4-node job using the Partner scheme allocates 5 nodes and successfully restarts within the allocation after a node fails.

Example restart after a failed node with Partner

Catastrophic failures

There are some failures from which the SCR library cannot recover. In such cases, the application is forced to fall back to the latest checkpoint successfully written to the parallel file system. Such catastrophic failures include the following:

Multiple node failure which violates the redundancy scheme.

If multiple nodes fail in a pattern which violates the cache redundancy scheme, data are irretrievably lost.

Failure during a checkpoint.

Due to cache size limitations, some applications can only fit one checkpoint in cache at a time. For such cases, a failure may occur after the library has deleted the previous checkpoint but before the next checkpoint has completed. In this case, there is no valid checkpoint in cache to recover.

Failure of the node running the job batch script.

The logic at the end of the allocation to scavenge the latest checkpoint from cache to the parallel file system executes as part of the job batch script. If the node executing this script fails, the scavenge logic will not execute and the allocation will terminate without copying the latest checkpoint to the parallel file system.

Parallel file system outage.

If the application fails when writing output due to an outage of the parallel file system, the scavenge logic may also fail when it attempts to copy files to the parallel file system.

There are other catastrophic failure cases not listed here. Checkpoints must be written to the parallel file system with some moderate frequency so as not to lose too much work in the event of a catastrophic failure. Section Fetch, Flush, and scavenge provides details on how to configure SCR to make occasional writes to the parallel file system.

By default, the current implementation stores only the most recent checkpoint in cache. One can change the number of checkpoints stored in cache by setting the SCR_CACHE_SIZE parameter. If space is available, it is recommended to increase this value to at least 2.

Fetch, flush, and scavenge

SCR manages the transfer of datasets between the prefix directory on the parallel file system and the cache. We use the term fetch to refer to the action of copying a dataset from the parallel file system to cache. When transferring data in the other direction, there are two terms used: flush and scavenge. Under normal circumstances, the library directly copies files from cache to the parallel file system, and this direct transfer is known as a flush. However, sometimes a run is killed before the library can complete this transfer. In these cases, a set of SCR commands is executed after the final run to ensure that the latest checkpoint is copied to the parallel file system before the current allocation expires. We say that these scripts scavenge the latest checkpoint.

Furthermore, the library supports two types of flush operations: synchronous and asynchronous. We say a flush is synchronous when the library blocks the application until the flush has completed. SCR also supports a flush in which the library starts the transfer but immediately returns control to the application. An external mechanism (e.g., another process) copies the dataset to the parallel file system in the background. At some later point, the library checks to verify that the transfer has completed. We say this type of flush is asynchronous.

Each time an SCR job starts, SCR first inspects the cache and attempts to distribute files for a scalable restart as discussed in Section Scalable restart <restart. If the cache is empty or the distribute operation fails or is disabled, SCR attempts to fetch a checkpoint from the prefix directory to fill the cache. SCR reads the index file and attempts to fetch the most recent checkpoint, or otherwise the checkpoint that is marked as current within the index file. For a given checkpoint, SCR records whether the fetch attempt succeeds or fails in the index file. SCR does not attempt to fetch a checkpoint that is marked as being incomplete nor does it attempt to fetch a checkpoint for which a previous fetch attempt has failed. If SCR attempts but fails to fetch a checkpoint, it prints an error and continues the run.

To disable the fetch operation, set the SCR_FETCH parameter to 0. If an application disables the fetch feature, the application is responsible for reading its checkpoint set directly from the parallel file system upon a restart.

To withstand catastrophic failures, it is necessary to write checkpoint sets out to the parallel file system with some moderate frequency. In the current implementation, the SCR library writes a checkpoint set out to the parallel file system after every 10 checkpoints. This frequency can be configured by setting the SCR_FLUSH parameter. When this parameter is set, SCR decrements a counter with each successful checkpoint. When the counter hits 0, SCR writes the current checkpoint set out to the file system and resets the counter to the value specified in SCR_FLUSH. SCR preserves this counter between scalable restarts, and when used in conjunction with SCR_FETCH, it also preserves this counter between fetch and flush operations such that it is possible to maintain periodic checkpoint writes across runs. Set SCR_FLUSH to 0 to disable periodic writes in SCR. If an application disables the periodic flush feature, the application is responsible for writing occasional checkpoint sets to the parallel file system.

By default, SCR computes and stores a CRC32 checksum value for each checkpoint file during a flush. It then uses the checksum to verify the integrity of each file as it is read back into cache during a fetch. If data corruption is detected, SCR falls back to fetch an earlier checkpoint set. To disable this checksum feature, set the SCR_CRC_ON_FLUSH parameter to 0.

Configuration parameters

As detailed in the user manual, there are many configuration parameters for SCR. To read the value of a parameter, the SCR library and SCR commands that are written in C invoke the scr_param API which is defined in scr_param.h and implemented in scr_param.c. SCR commands that are written in PERL acquire parameter values through the scr_param.pm PERL module (Section scripts/common/scr_param.pm.in). Through either interface, SCR returns the first setting it finds for a parameter, searching in the following order:

1. Environment variables,

2. User configuration file,

3. System configuration file,

4. Default settings.

The user is not able to set some parameters. For these parameters, any setting specified via an environment variable or user configuration file is ignored.

When the library initializes the scr_param interface in an MPI job, rank 0 reads the configuration files (if they exist) and broadcasts the settings to all other processes through the scr_comm_world communicator. Thus, scr_comm_world must be defined before initializing the scr_param interface.

Global variables and portability

All global variables are declared in scr_globals.h and defined in scr_globals.c.

Most of the SCR library code uses basic C routines, POSIX functions, and MPI calls. It is written to be easily portable from one system to another. Code which is different from system to system should be abstracted behind a function and moved to scr_env.h/c. This practice simplifies the task of porting SCR to new systems.

[Ross]

23. Gropp, R. Ross, and N. Miller, “Providing Efficient I/O Redundancy in MPI Environments,” in Lecture Notes in Computer Science, 3241:7786, September 2004. 11th European PVM/MPI Users Group Meeting, 2004.

[RAID5]

4. Patterson, G. Gibson, and R. Katz, “A Case for Redundant Arrays of Inexpensive Disks (RAID),” in Proc. of 1988 ACM SIGMOD Conf. on Management of Data, 1988.
